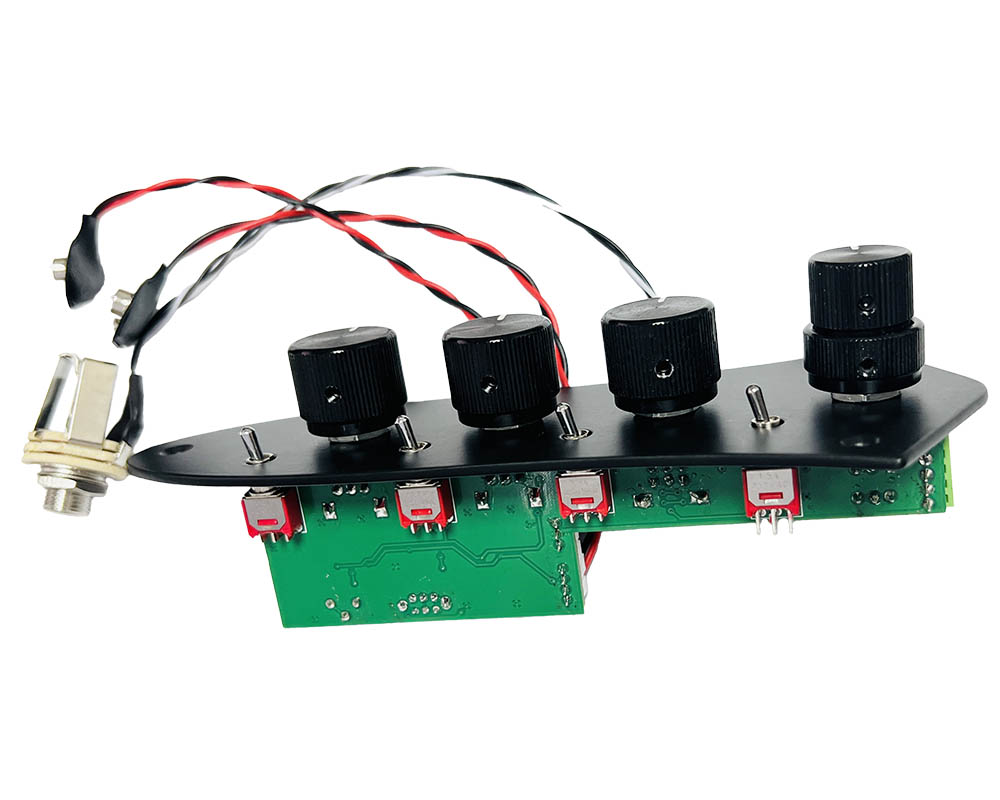

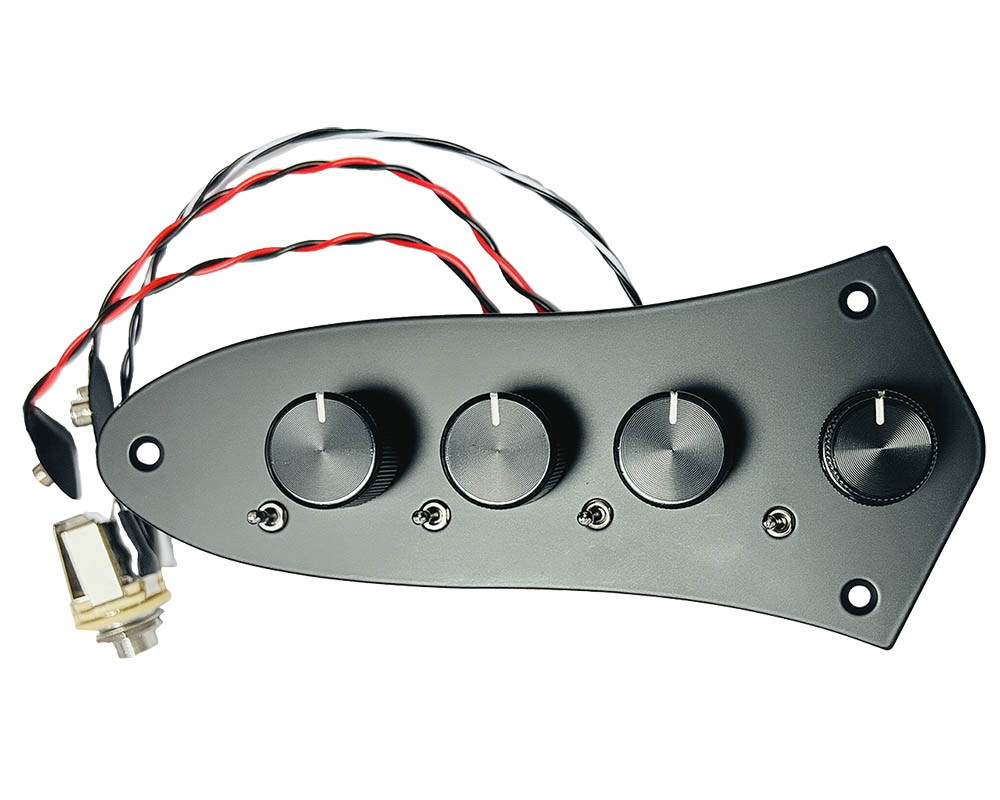

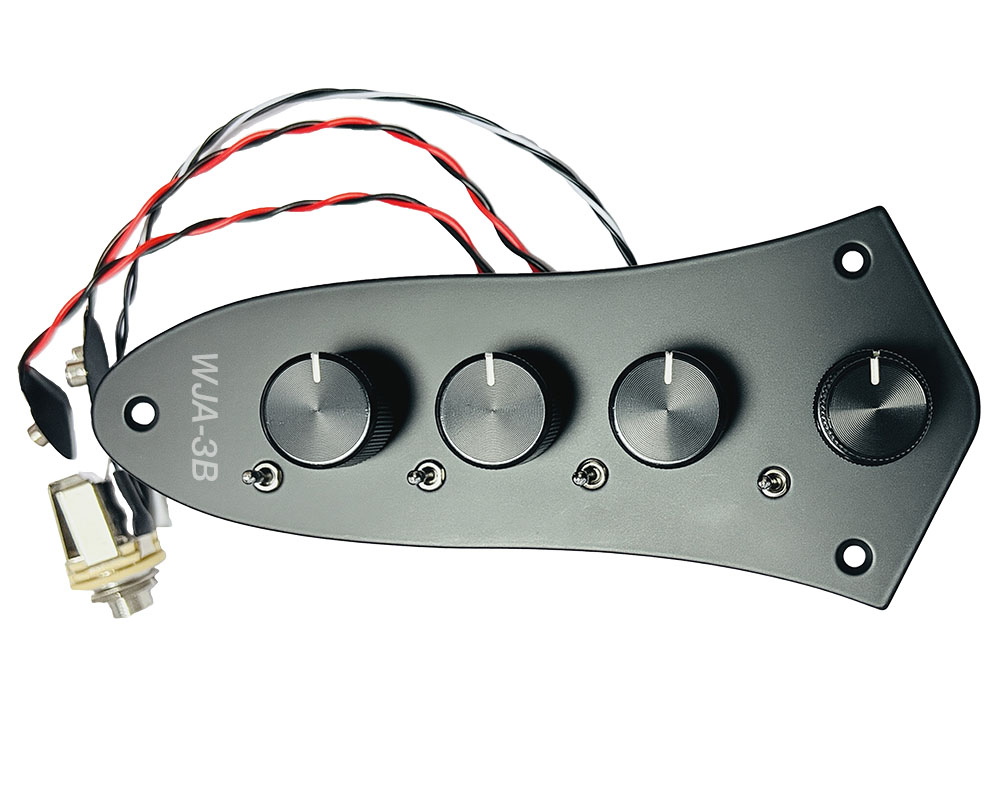

WJA-3B ONBOARD BASS GUITAR 3 BAND PREAMP
ALL-IN-ONE JAZZ-STYLE CONTROL PLATE
**PRE-ORDER NOW FOR EARLY OCTOBER SHIPPING**
With Selectable Low, Mid, and Treble Frequencies & Stacked Volume / Pickup Blend knob
for best audio experience, wear headphones
KEY FEATURES
The most significant difference lies in how companies typically set their EQ frequencies and bandwidth, particularly for the low end. Utilizing the proven WJBP EQ design method, I’ve crafted an onboard preamp that stands apart.
- Stacked Volume / Pickup Blend knob
- Treble control with 6 kHz / 10 kHz switch

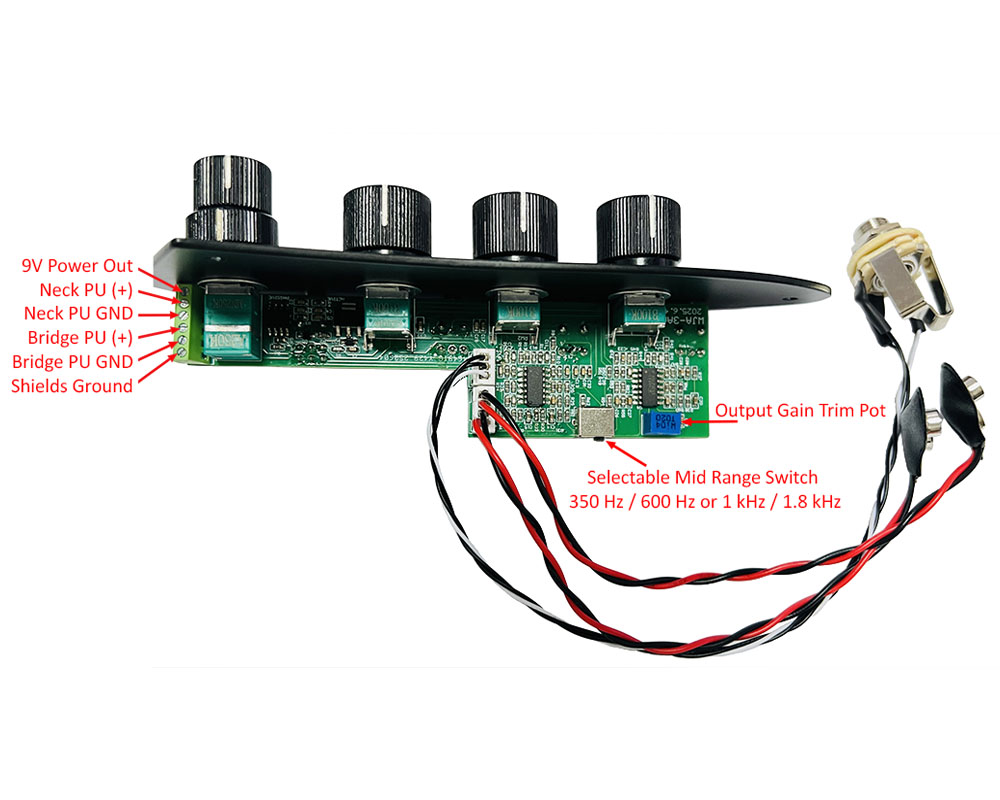

- Mid control with 350 Hz / 600 Hz switch
- Bass control with 44 Hz / 80 Hz switch
- Active / Passive mini toggle switch
- Runs on single 9V or dual 9V (18V) for more headroom
- Includes both 9V and 18V battery cables
INSTALLATION

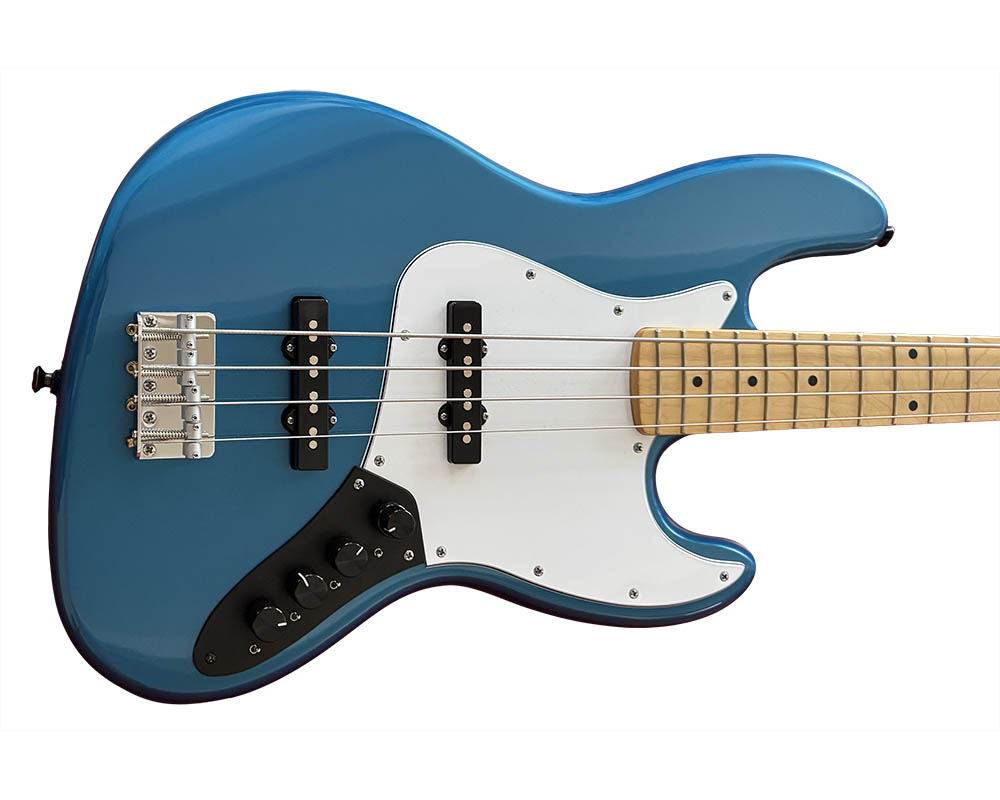

Fits most Fender-style Jazz Bass cavities.
Recommended: increase cavity depth by 2–3 mm for optimal fit.
Some models may require minor routing adjustments.
CAVITY REQUIREMENTS
- Min. Length: 145 mm
- Width: 32–35 mm
- Depth: 35 mm (add 1–2 mm if battery inside cavity)
We highly recommend external battery compartment(s) for ease of changing batteries
PLATE SIZE
152 mm × 70 mm (widest point), 2 mm thick
PRE-ORDERS OPEN NOW
Limited to 100 units – don’t miss your chance to own the first edition.
