Send stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (
Description

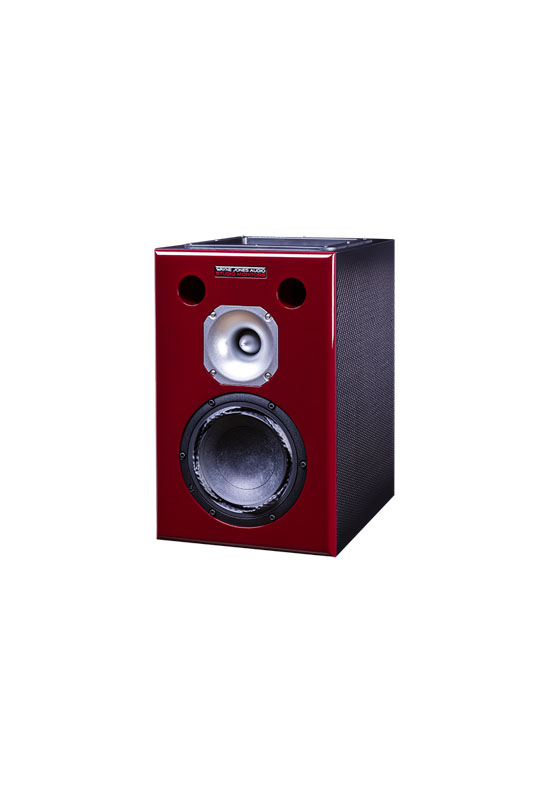

Wayne Jones Audio 6.5" 2-Way Monitors – "When Size Really Matters"
Perfect size for Broadcast Vehicles & Home Studios
More Product Details, Reviews & Photos ►
Cabinet Specifications
- Finish – Ultra deep high gloss 2 Pak clear finish
- Carbon fiber construction with 18mm MDF front and rear panels
- Colour – Red or Graphite
- Available in custom colours. Match your décor, order your preferred colour
Cabinet Specs – for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1: Bass-Mid – 500 Watts RMS @ 4 ohms
- Channel 2: Tweeter – 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Drivers: Bass-Mid 6.5 inch, long stroke, ultra low distortion with incredible clarity, musical with tight bottom end
- Magnet: Ferrite
- Tweeter: Machined Aluminium 1.46" Voice coil, Kapton
- Crossover point: 2.25 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC
DSP & Control Plate Features
- Inputs: XLR Analogue Balanced (with SPDIF option)
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- H39 x W25 x D34 cm
- H15.3 x W9.8 x D13.4 inches
Single Monitor Weight:
- 10.7 kg
- 23.6 lbs
Shipping Dimensions & Weights:
Shipped as one pair on a 1/2 size pallet (included in shipping weight & dimensions).
H 80 x W 60 x D 58 cm
29 kg / 64 lbs
SoundID Reference From Sonarworks With Microphone Included
The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program. Read More ►
