Description

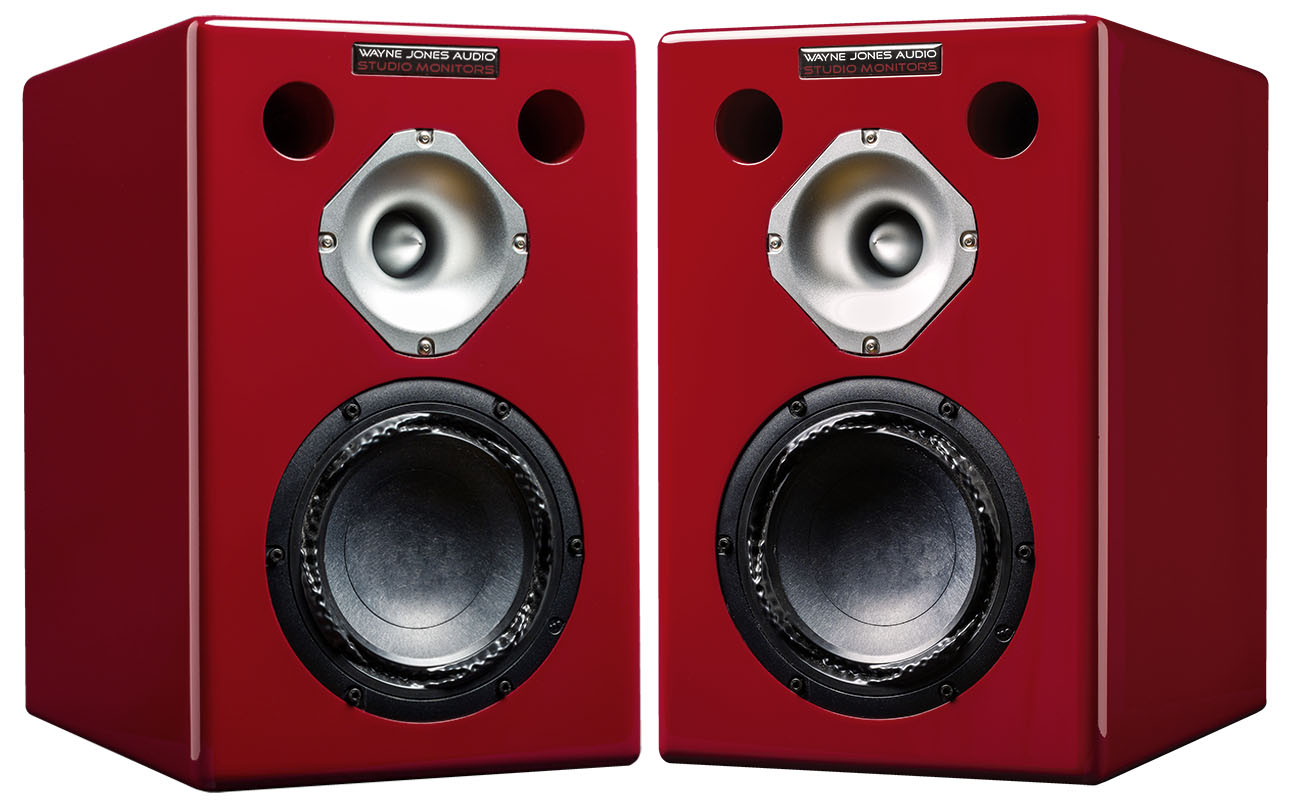

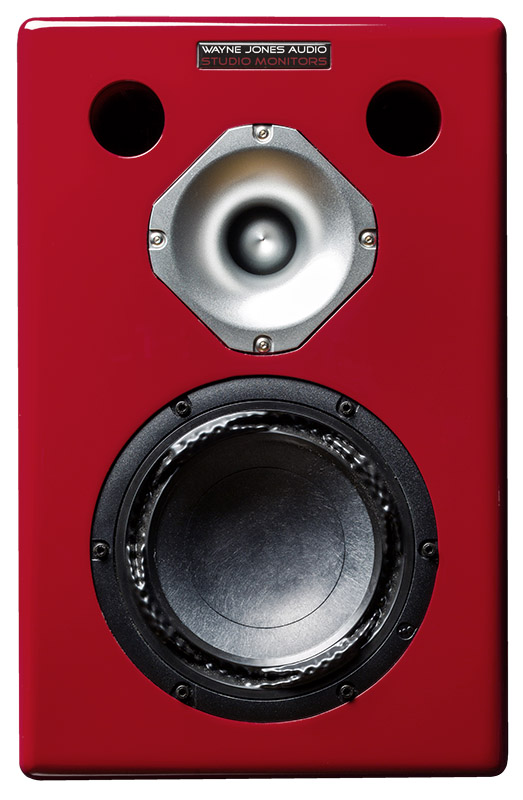

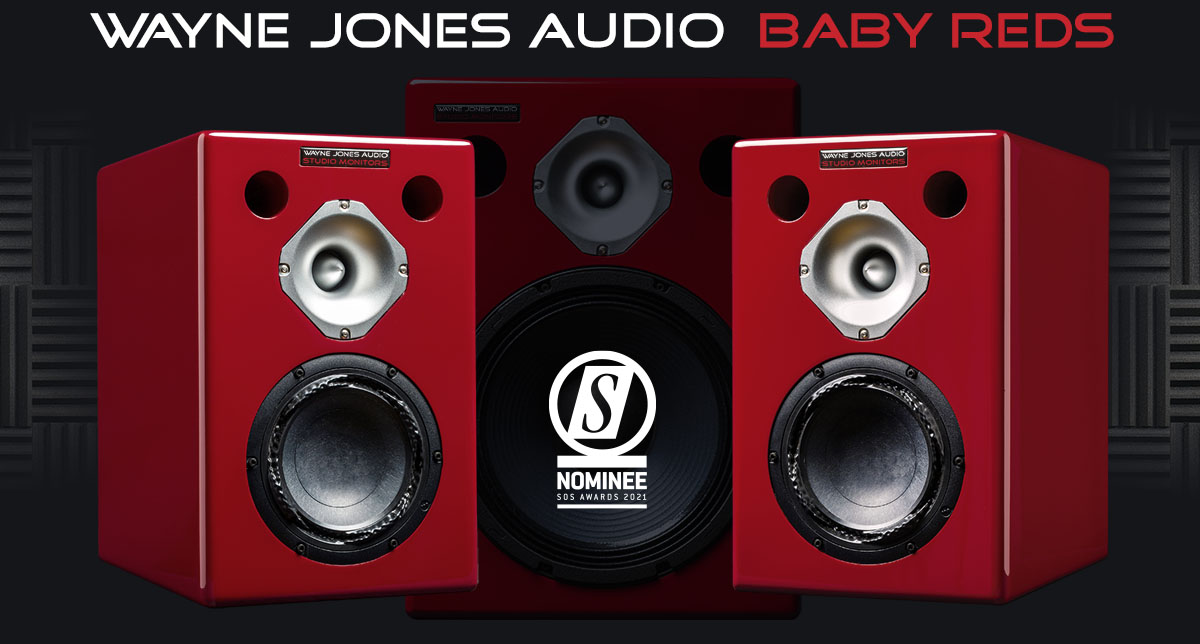

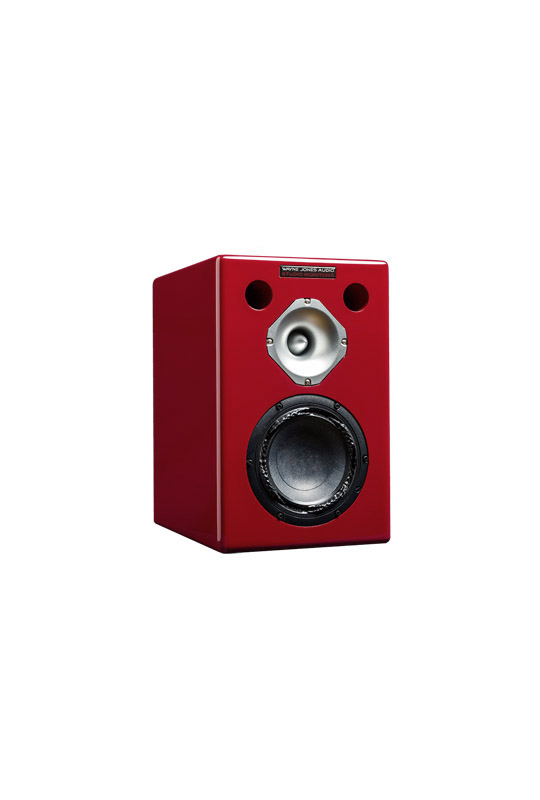

Wayne Jones Audio Baby Reds – “When Size Really Matters”
More Product Details, Reviews & Photos ►
Upload and store SoundID Reference calibration profiles directly into Wayne Jones Audio Monitors
Wayne Jones Audio in partnership with SoundID Reference from Sonarworks are pleased to announce the release of the ground breaking capability of uploading and storing your SoundID Reference for Multichannel room calibration profiles into Wayne Jones Audio Studio Monitors.
No longer is there a need to have the SoundID Reference app open in your DAW or spend time entering calibration data into the DAW or renderer. Now you can work with zero latency out of the box.
Purchase SoundID Reference ➤
Cabinet Specs:
- Finish – Stunning 2 Pak Automotive paint finish with high gloss clear coats
- Colour – Red or Graphite
- Available in custom colours. Match your décor, order your preferred colour
- Woodwork 18mm MDF
Cabinet Specs – for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1: Bass-Mid – 500 Watts RMS @ 4 ohms
- Channel 2: Tweeter – 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Drivers: Bass-Mid 6.5 inch, long stroke, ultra low distortion with incredible clarity, musical with tight bottom end
- Magnet: Ferrite
- Tweeter: Machined Aluminium 1.46″ Voice coil, Kapton
- Crossover point: 2.25 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC

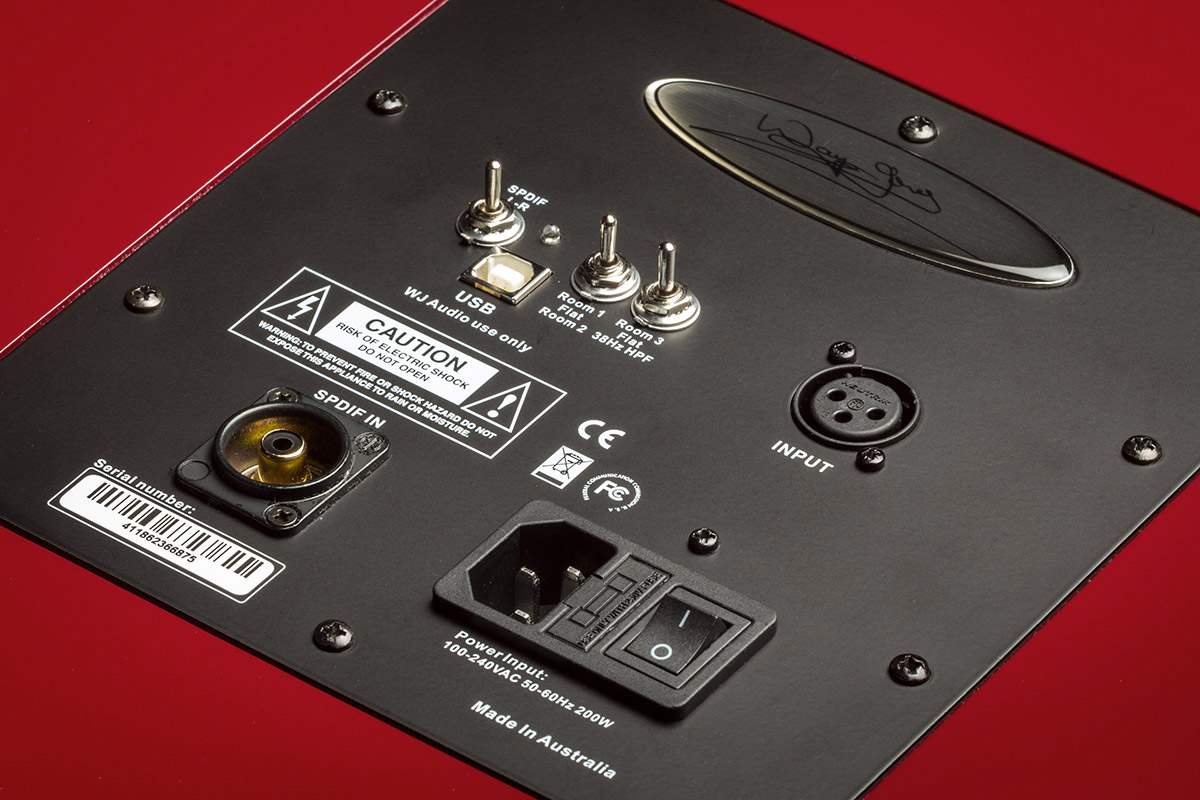

DSP & Control Plate Features
- Inputs: XLR Analogue Balanced
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- H39 x W25 x D34 cm
- H15.3 x W9.8 x D13.4 inches
Single Monitor Weight:
- 13 kg
- 29 lbs
Shipping Dimensions & Weights:
Shipped as one pair on a 1/2 size pallet (included in shipping weight & dimensions).
H 80 x W 60 x D 58 cm
35 kg / 77.2 lbs
Ordering
As these are custom & hand made in Australia there could be a wait time of up to 8 weeks from time of order
Payment
50% required at time of order with balance payable when ready to ship
International shipping is by DHL Express
Shipping & local duties & taxes are the customers responsibility
N.B. Australia currently has free trade agreement with USA
Warranty is 3 year limited on all parts & Labour
Shipping costs are calculated on the Checkout page.
N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.
