ultimate excellence in soundcustom colours available

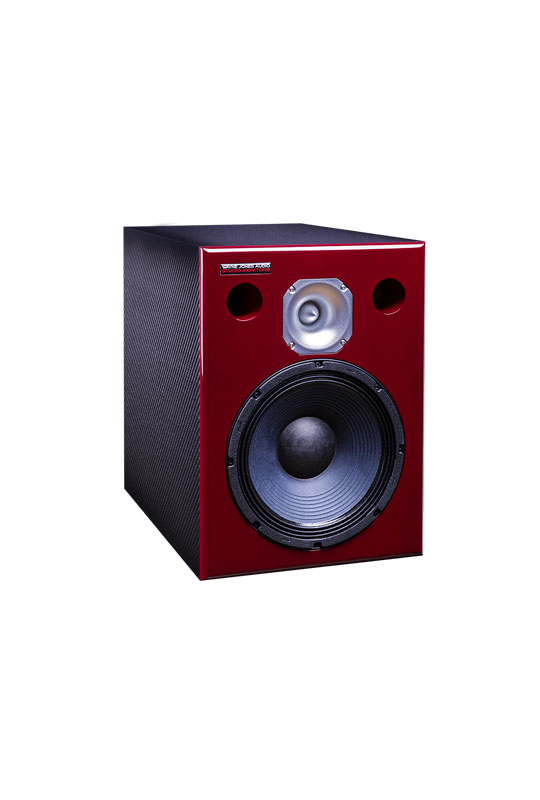

10″ 2-Way Powered Carbon Fiber Studio Monitors (pair) 650 Watt each

AUD $14,109.00 (inc GST)

**The Wayne Jones Audio One Click SoundID Reference Upload App**

Sonarworks' SoundID Reference profile can now be stored directly within Wayne Jones Audio Studio MonitorsSend stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)

New Model (November 2023) – Carbon Fiber Technology

  • New technology, new look, new features. Carbon fiber construction with 18mm MDF front and rear panels
  • Control panel along with the power amp module are now mounted together on the rear panel
  • Tweeter has been rotated horizontally & moved closer to the 10” driver
  • All models now incorporate an Ethernet connection for SoundID Reference calibration file uploads

Using Carbon fiber for the construction of the majority of cabinet panels provides a more consistent and even internal acoustic cabinet response. Makes for a smoother measurement curve when the initial cabinet measurements are taken. Improves the flat cabinet measurement result.

Ultra deep high gloss 2 Pak clear finish.

Weight advantages: A single WJA 1×10" 2 way Monitor is now approximately 6 kg lighter than previous MDF models. Now 19.9 kg, previously 26.2kg.

High powered, mid/near-field 2-way studio monitors. Custom handmade 10” bass-mid driver, Kevlar impregnated eucalyptus pulp air-dried cone. Bullet-style machined aluminium tweeter with a 1.46” voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.

Stunning Frequency Response, Incredible phase & time alignment. Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.

  • Stunning frequency response
  • Incredible accuracy
  • In phase with world leading transient response, allowing hyper accurate compression settings within the mix
  • Faster mix times
  • Less changes
  • Virtually no cross referencing
  • 650 Watts of power per Monitor
  • 35 Hz to 20 kHz flat
  • A bass response more musical than any sub combination
  • Packaged with SoundID Reference From Sonarworks With Microphone Included
  • Finish – Stunning 2 Pak Automotive paint finish with high gloss or matte clear coats
  • Standard finish is Red or Graphite

Main Product Page for more Details, Reviews & Photos ►

Shipping costs are calculated on the Checkout page.
N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.

Available in custom colours. Match your décor, Contact Wayne Jones AUDIO to order your preferred colour.

Description

Cabinet Specifications

  • Finish – Ultra deep high gloss 2 Pak clear finish
  • Carbon fiber construction with 18mm MDF front and rear panels
  • Colour – Red or Graphite
  • Available in custom colours. Match your décor, order your preferred colour

Cabinet Specs – for each cabinet:

  • Power: 650 Watts RMS powered
  • Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms
  • Channel 2 Tweeter: 150 Watts RMS @ 8ohms
  • Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
  • Power Amp frequency: 20 Hz – 20 kHz
  • Cabinet tuning: 35 Hz to 20 kHz
  • Cabinet response: Half loudness Graphed down to 28Hz
  • HPF switch at 30 Hz
  • Driver: Custom made Wayne Jones 10" driver with Aluminium cast frames, specially formulated Kevlar impregnated eucalyptus pulp cone.
  • Voice coil: 3″
  • Magnet: Massive Ferrite
  • Tweeter: Machined Aluminium 1.46" Voice coil, Kapton
  • Crossover point: 2.4 kHz
  • Control plate: Black Steel
  • Universal Mains Power in: Standard IEC

DSP & Control Plate Features

  • Inputs: XLR Analogue Balanced
  • DSP – 192K SHARC processing
  • USB connector for WJ Audio use only. Used for software updates
  • Ethernet connection for SoundID Reference calibration file uploads
  • 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
    • Inputs: XLR Analogue (center position mutes monitor)
    • Room 1: Inactive. For future development /
      Room 2: SoundID Reference calibration (preloaded with test profile)
    • Room 3: Inactive. For future development /
      30Hz HPF
  • LED on Control Panel for power operation

Single Monitor Dimensions:

  • 33 x 45 x 50 cm
  • 13 x 18 x 20 inches

Single Monitor Weight:

  • 19.9 kg
  • 43.87 lbs

Shipping Dimensions & Weights (shipped as pair):
Pallet included in shipping weight & dimensions.
Shipping Dimensions: W 80 x H 64 x D 60 cm = Total 204 cm, (31.5 x 25.2 x 23.62 Ins)
Weight: 49.5 kg / 109.13 lbs





SoundID Reference From Sonarworks With Microphone Included

SoundID Reference with Mic from Sonarworks now packaged with Wayne Jones Audio Studio MonitorsThe Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program.  Read More ►





Industry Reviews – (Information Below For Previous Model)

Sound On Sound editor’s pick for Gear Of The Year 2019

Wayne Jones Audio Studio Monitors awarded Sound On Sound editor’s pick for Gear Of The Year 2019

Wonderful recognition from the editors of Sound On Sound Magazine, the Wayne Jones Audio Studio Monitors have been selected as a Editors’ Pick for Gear Of The Year 2019.


We are proud to announce our Nomination in the Prestigious SOS Global Reader AwardsNominated in the Prestigious
SOUND ON SOUND Global Reader Awards

SOUND ON SOUND – Glowing Product Review ►
“The World’s Premier Music Recording Technology Magazine”





I am not exaggerating when I say that the hair stood up on the back of my neck whilst listening to it through the Wayne Jones Audio studio monitors.
Read Full 3 Page Stunning Review on Sound On Sound website ►

Bob Thomas, Sound On Sound Magazine

I knew I had to have them, the Wayne Jones Audio Studio Monitors are hands down my new favorite monitors. After hearing these I tracked down the manufacturer unsolicited.  Full Review ►

Krish Sharma (Rolling Stones Recording Engineer)

With my passion, years of experience as a pro bass player, writer, producer, solo artist & designer of the Wayne Jones Audio bass products. In conjunction with Steve Scanlon, Australia’s #1 award winning studio & live engineer & Michail Barabasz of Lorantz Audio with his years of speaker design & manufacturing we have designed the Wayne Jones Audio Monitors.

Now you can enjoy them as much as we do.

Wayne Jones

More Product Details, Reviews & Photos ►


Ordering

As these are custom & hand made in Australia there could be a wait time of up to 8 weeks from time of order

Payment

50% required at time of order with balance payable when ready to ship

International shipping is by DHL

Shipping & local duties & taxes are the customers responsibility
N.B. Australia currently has free trade agreement with USA

Warranty is 3 year limited on all parts & Labour


Shipping costs are calculated on the Checkout page.
N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.

More Product Details, Reviews & Photos ►

Additional information

Weight 49 kg
Dimensions 80 × 66 × 60 cm
Shipping

Above dimensions and weight are shipping measurements for a pair (including shipping pallet)

Shipping costs are calculated on the Checkout page.
N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.

Products shipped from Melbourne, Australia.

Shipped as a pair on a half pallet (included in shipping weight & dimensions)
W 80 x H 64 x D 60 cm = Total 206 cm, (23.6 x 26 x 31.4 Ins)
Weight 49.5 kg / 13108 lbs

Colour

Red, Graphite, White, Order Custom
